Thursday, April 30, 2015

Vodafone R226 4G Mobile WiFi Hotspot

The Vodafone R226 Mobile Wi-Fi hotspot is the first LTE router from Vodafone, which could support LTE Category 6 with up to 300 Mbit/s for downlink. Up to 10 devices can be connected wirelessly via Wi-Fi with fast Internet. A display on the front of the Vodafone R226 shows all status information such as the used data volume reliably. The built-in rechargeable battery provides an operating time of approximately 10 hours.





LTE features and characteristics of Vodafone R226

Manufacturer and type designation   Huawei E5786 = Vodafone R226
Download to rate   300 Mbit/s
Upload to rate   50 Mbit/s
Compatible LTE bands   800, 850, 900, 1800, 2100, 2600 MHz
backward compatible with   LTE CAT 3 & 4, DC-HSPA+, HSPA+, HSDPA, UMTS, EDGE, GPRS, GSM
Support for LTE-Advanced   Yes
MIMO Support:   MIMO 2x2
Connector for external antenna   Yes; 2 antenna connectors TS-9 available(Buy Vodafone R226 Antenna)
LTE Category   LTE Category 6 (CAT6) modem
Chipset   Hisilicon | HPM Coretx A9 processor
Wi-Fi standards   802.11 a/b/g/n/ac (866 Mbit/s)
Wireless Internet Hotspot function   yes - for up to 10 devices
Others
Accumulator   3000 mAh - not changeable (surfing to 10 hours)
Dimensions (WxHxD)   106 x 66 x 15.9 mm 145 grams
USB standard   USB 2.0
Memory card expansion   Yes; MicroSD up to 32 GB
Manual PDF   Refer to user manual for Huawei E5786
Test Report
Release   December 2014
available at   www.4gltemall.com




LTE-Advanced with 300 Mbit/s



The Vodafone R226 Router is made by the Chinese manufacturer Huawei E5786,which is the first devices for LTE Category 6 (LTE-Advanced), so that when the appropriate network available, the matching data rate speeds of up to 300 Mbit/s in the downlink and 50 Mbit/s Uplink are possible. Of course, the router is also backward compatible with older LTE expansion stages such as CAT3 (100 Mbps) and CAT4 (150 Mbps). The network technologies GSM and UMTS are supported, and in the UMTS network, up to 42.2 Mbit/s in the downlink is possible. LTE-Advanced will probably introduced from the first quarter of 2015 from Vodafone.





Wi Fi ac and powerful battery



Up to 10 devices can be simultaneously connected via Wi-Fi with the Vodafone R226, an eleventh device can be connected via microUSB. From the microUSB connector, the 3,000 mAh strong battery could be charged, which allows an operating time of up to 10 hours. An AC adapter and a USB cable are included, but the battery is unreplaceable. The WLAN module of the Vodafone R226 transmits both on 2.4 GHz and 5 GHz on (dual band). With a maximum speed of 866 Mbit/s (WLAN ac), the WLAN of the Vodafone R226 is very fast compared to other devices of this type, up to 300 Mbit/s high-speed Internet connection can thus be easily transferred to the terminal.



The Vodafone R226 looks absolutely identical to "Speedport Mini II "by Telekom, just carries the Vodafone logo. On the front of the Vodafone R226 is a large display that clearly displays a variety of information in black and white format. Thus, for example, we can see about the used data volume, online time or the battery level. The operation of the Vodafone R226 is done via the smartphone app "Vodafone Mobile Wi-Fi Monitor" or a web interface. User can enter the address 192.168.8.1 in the browser. If user want to improve reception,  to connect an external antenna is possible.



In addition, the Vodafone R226 provides a slot for a MicroSD memory card, so you can share files between multiple devices. The SIM card must be in micro-SIM format and is inserted under the cover on the back.     From the feedback of users, Vodafone R226 improves much than previous model such as R215 and R208. With the latest technology, Vodafone R226 would be reliable partner for travel.

Tuesday, April 28, 2015

Huawei E5770 Mobile WiFi Router with RJ45

Huawei has unveiled a new mobile LTE hotspot E5770 with integrated RJ45 LAN interface at MWC in Barcelona. The E5770 LTE router also has a very powerful battery (5,200 mAh), achieving an operating time of up to 20 hours. The Internet could be connected via the LTE cellular modem or via LAN interface. First MiFi hotspot with LTE Cat4 and RJ45 interface The Huawei E5770 is the first mobile wireless router from Huawei, which is combined LTE Category 4 with a RJ45 LAN interface and a powerful battery. As we know before, the fastest 3G mobile Wi-Fi hotspot was Huawei E5730, which also has an Ethernet port, but unfortunately it did not support LTE, and a maximum of 42.2 Mbit/s could be achieved on UMTS network. Huawei E5770 provide better solution with higher speed for LTE network. The Huawei E5770 comes with a black, leather-like plastic surface and has a small 0.96 inch OLED display on the front that displays the information such as the network operator name and the used data volume. Under a cover on the side, you will find the RJ45 LAN port and the microUSB port for charging the battery. In addition, a USB with output of 5V/2A is available, so you can use the Huawei E5770 also for charging other devices such as smartphones ("Power Bank" function). LTE and Wi-Fi Based on the LTE Modem in Huawei E5770, it can reach speeds of up to 150 Mbit/s for the downlink and 50 Mbit/s for the uplink in the LTE network. In the UMTS network, possible speed could reach up to 42.2 Mbit/s in the downlink on DC-HSPA+. Which frequency bands are supported, Huawei didn’t indicate at MWC in Barcelona. However, it is assumed that there will be several variants for different markets like other Huawei models such as E5786. However, it’s a pity that Huawei E5770 wireless module only works in the 2.4 GHz band, the 5 GHz band is not available in this device. Up to 10 users can be connected simultaneously with the Huawei E5770, an eleventh device can connect to the internet via the USB interface. Huawei E5770 is a perfect pocket router for travel. It provides a wonderful solution for business journey. When user need internet at hotel or outdoor, Huawei E5770 would be a good partner. We believe Huawei E5770 will be available soon.

Thursday, April 23, 2015

Netgear AC790S 4G LTE Cat6 Mobile Hotspot Review

Netgear AC790s LTE hotspot was presented in September 2014 and has since been introduced by Telstra to its product range in Australia. Comparing with other mobile LTE routers, the main difference is the large battery  with touchscreen display and support for LTE-Advanced Cat6. In Europe area, the Netgear AC790s is not yet available, and it is doubtful that we will get the device in near future, because the successor with LTE CAT9 is already waiting in the wings. Actually, the predecessor of AC790s model is the Netgear AC785s, which was very good. Luckily, we have seen the Netgear AC790s closely at MWC.

Netgear AC790s, which was exhibited at the exhibition booth of Netgear, was provided with a small branding by Australian operators Telstra. Till now, Telstra is the only provider with whom the Netgear AC790s is available. But the rest of the devices are no branding and with original Netgear, for example the software. The unit is operated by a large colorful touch screen, although a web interface is still available, but not required for operation. The touch screen is not as fast as you would expect from a smartphone, but for a mobile hotspot, it is sufficient in any case completely.



Much more important than the touch screen is the integrated modem in AC790s. This could support LTE (Cat6) with peak download speed up to 300 Mbit/s for the downlink and 50 Mbit/s for uplink. Of course the device is also backward compatible with 3G and 2G along with various data accelerator. The connection to the computer is via WiFi 802.11 ac, ie to 2.4 GHz and 5 GHz. It is possible to enhance the speed and the signal strength with an external antenna(Buy Netgear AC790S antenna from here: http://www.4gltemall.com/4g-antenna-two-ts-9-connector.html ). There are two connectors for the external antenna and they are protected with a sliding mechanism from dust and dirt. On the other side, it’s the power button.





A very interesting accessories for the Netgear AC790s hotspot is available, the DC112A SmartCradle. It is a docking station that not only strengthen the router signal through USB  and thus charging the battery, but also has other functions. Thus, the wireless signal is amplified and there is a Gigabit LAN port on the back of DC112A. In addition, the mobile radio is improved signal over the external antenna connections.







Tuesday, April 21, 2015

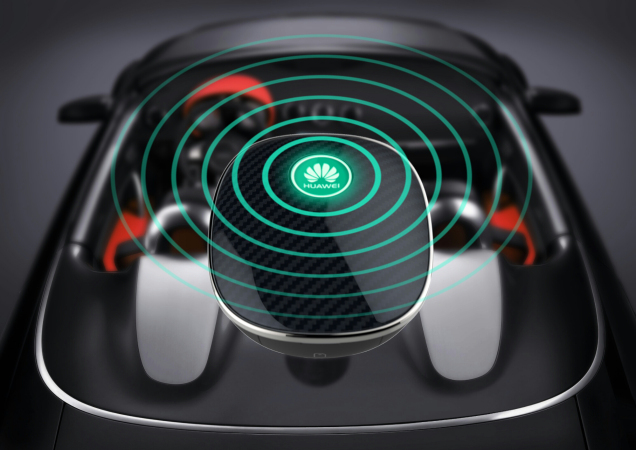

Huawei CarFi Hilink E8377 4G Hotspot for Car

Penetration of WiFi in vehicle infotainment system is set to become an important trend. To address this trend and tap the large potentials and opportunities, the company Huawei has cooperated with France network provider Orange to provide a wireless solution for vehicle passengers to connect 4G networks when moving. The device is named Huawei CarFi E8377 and is designed to cover up to 10 users. The Huawei CarFi E8377 device, in compact size, gets 12 volt power from vehicle, which is designed specifically for use in these environments, either for personal use or for family members to provide connectivity while traveling, or for fleets of taxis and passenger vehicles.   Huawei emphasize that the essence of CARFI is the simplicity of use, because once connected to power in the vehicle, user just need press the single button for ignition and commissioning. The CarFi E8377 has a card slot to insert the SIM card from operator.   User can download the appropriate application for iOS and Android to manage the device, so you can modify the parameters of the wireless network name SSID and security key. Those who do not want to be complicate have these screen printed data on-device so that they can implement it without having to install any application. However, the application allows user to know the devices are connected, consumption data and other set of interesting parameters. The Huawei CARFI ensures LTE Category 4 connectivity with speeds up to 150 Mbps in the best conditions.   Huawei CarFi will automatically turn off when no WiFi-compatible device is identified, and can still be used to charge other electronic devices even when turned off as long as car is in use. Huawei CarFi does not contain a battery which provides protection against overheating in hot climates, and has a built-in self-regulating temperature protection function that automatically lowers the temperature of the device when necessary. Michael Faure, director of residential mobile marketing for Orange Spain stated that it is an interesting product because more than 90 percent of tablets sold are sold with Wifi connectivity mode without 4G options. So Huawei CarFi would provide reliable wireless support for these tablets. And for more vehicles, the wireless network may be a perfect solution for the passengers, Huawei E8377 carFi is slim and easily meet the network requirement.   And the USB port in the Huawei E8377 would provide the channel to charge other electronics such as smartphone, tablets. With an elegant and refined look, Huawei CarFi features detailed craftsmanship incorporating superior-grade wood and carbon fiber materials for increased durability during everyday use. It comes in three color variations, fashion elite black and warm family wood, and dynamic speed red, to complement the interior of most vehicles. It’s a perfect solution for vehicle!

Thursday, April 16, 2015

TP-Link M7350 4G Mobile WiFi Hotspot Review

TP-Link has launched its first LTE mobile hotspot M7350 in the Cebit 2015. Since the predecessor M5360 showed a good performance with UMTS modem in the test, we have the successor M7350 for performance test. The TP-Link M7350 could achieve speeds of up to 150 Mbit/s in the downlink over LTE Cat4 and the Internet connection is via WLAN at 2.4 and 5 GHz. The battery has capacity of 255 mAh and user can easily replace it.

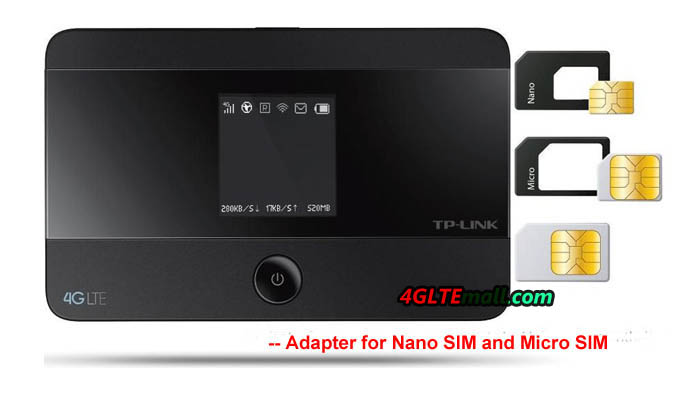

The package reveals all technical data and the design of the TP-Link M7350. There is also a great reference about the three-year warranty from manufacturer TP-Link. If you open the package, you can find the hotspot M7350 next to a battery with a capacity of 2550 mAh, a micro USB cable, a power supply and a Quick Start Guide. As a special feature, there are two SIM card adapters included, one from nano-SIM to Mini SIM and the other one from the Micro SIM to Mini-SIM. The adapters solve the big problem about the SIM format. All those who have a smaller SIM card or the mini-SIM format could use their SIM card with the TP-Link M7350.



TP-link M7350 Battery



Whether with or without adapter, the SIM card is inserted underneath the battery; and a MicroSD memory card is optional to use in the M7350. The battery cover is stuck and needs to open some force, but most users will keep changing the battery rather than changing it. The body of the TP-Link M7350 is held largely in matt black plastic and looks very spectacular. The front along with the small OLED display is partially covered with a clear plastic. This cover scratched amazingly fast in contrast to the rest of the case.





TP-Link M7350 can use LTE in the frequency ranges to 800/900/1800/2100/2600 MHz. Thus it can be used not only in Europe but also in many other areas worldwide. The maximum speed over LTE is 150 Mbit/s for the downlink and 50 Mbit/s for the uplink (LTE Category 4). In the test, M7350 could work with a SIM card from Vodafone and reach up to 130 Mbit/s. And the reception quality is good, even at the location far from the base station. We remember that we had tested Huawei E5786, and the result looks very similar. As you know, Huawei E5786 is with the latest wireless technology.





If the LTE network is not available, user can use the UMTS ang GSM network through TP-Link M7350. When connected with DC-HSPA+ in the UMTS network, M7350 could reach up to 42.2 Mbit/s for the downlink and 5.76 Mbit/s for the uplink. The most common frequency ranges around 900 to 2100 MHz are supported. In the test I have a telecom card up to 26 Mbit/s can be achieved via UMTS, and I was about one kilometer away from the base station and the device had a good signal reception.





The WLAN module in the TP-Link M7350 transmits both 2.4 GHz and at 5 GHz. The range is naturally limited in comparison to an ordinary wireless router for stationary use, but perfectly adequate for most usage scenarios. So you can still enjoy surfing through two "normal thick" walls and about 5 meters (in the 2.4 GHz band).   On the body side of the M7350, there is a menu button, which can be used in conjunction with the power button on the front to operate the equipment. A few important functions can be controlled so easily without the web interface. So you can see for example Wi-Fi SSID and password on the display to connect devices with the TP-Link M7350 quickly and easily. The second menu item in the device allows the choice of wireless frequency band (2.4 GHz or 5 GHz) and the third is for you to enable or disable the roaming mode. Particularly interesting is the ability to set the network mode directly on the device (eg "LTE only" or "UMTS only "). This can be useful in some regions when the hotspot constantly switches between the mobile technologies.



TP-link M7350



The web interface allows all advanced settings options. It can be reached via http://tplinkmifi.net and is very quick and easy to use. The design is clear and the functions are easily accessible. Overall, the functions are not as extensive as the web interface of a Netgear AC785s, but all the important settings are available. The TP-Link M7350 battery could last continuous use for about 6-7 hours and can be recharged via microUSB connector. In practice, the WLAN switches off automatically when it’s not in use for about 15 minutes. Thus, the unit saves energy. If you want to surf again, you must briefly press the power button only once.



The M7350 TP-Link is a good mobile LTE hotspot. In the test, it was stable and provided good rates. The equipment is dual-band Wi-Fi with a well-read display and a fast web interface. Overall, the TP-Link Router M7350 is a recommendable 4G pocket WiFi!
