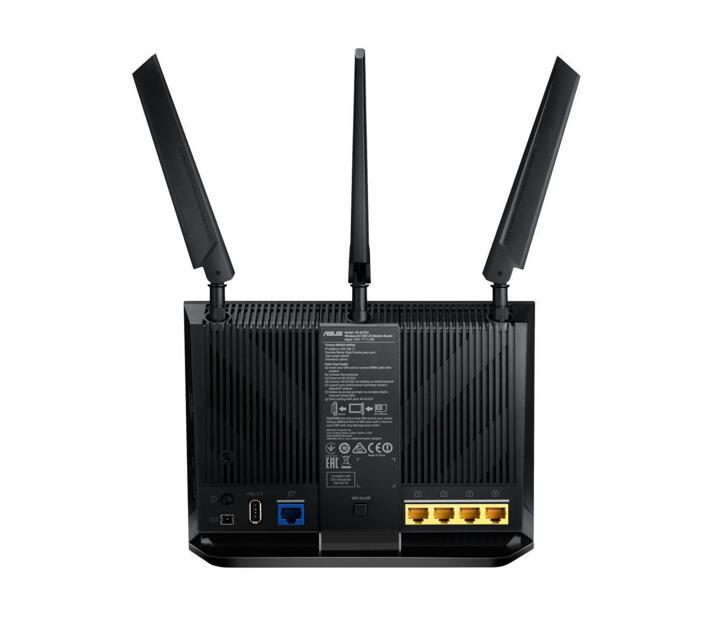

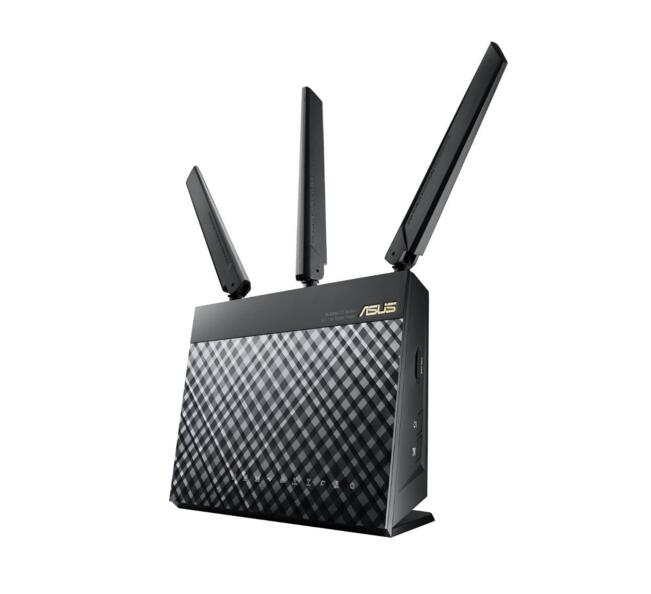

Asus 4G-AC55U LTE Router Review

Asus offers the 4G-AC55U in December 2015,  which is a new LTE router for stationary use. The new 4G Router offers many connections and is supplied with a current WLAN 802.11ac radio module, allowing speeds of up to 867 Mbit/s via WLAN in the 5 GHz range. The integrated cellular modem could support peak up to 150 MBit/s in the downlink and up to 50 Mbit/s in the uplink with LTE networks, and UMTS and GSM are supported. The design is quite exceptional for a LTE router; there is a diamond pattern on the front and the radio antennas are designed visible clearly outside the housing.   With the Asus 4G-AC55U router, you can choose the Internet access via the mobile network (LTE, UMTS, GSM) or via an existing modem. For the mobile use, of course you need a SIM card (mini-SIM form factor) with a data plan, it does not matter whether it is a prepaid card or a contract card, the Asus 4G AC55U has no SIM lock and can be used with any tariff. If you want to use the router via an existing Internet connection, you need a modem (for example, a DSL or cable modem, depending on the connection). The Asus AC55U connects simply via the Gigabit WAN port to the modem, then the router acts as a pure Access Point.   According to the Asus official site, the 4G-AC55U could support LTE frequency bands at FDD Band 800 /1800 /2600Mhz and 4G TDD-LTE at 2500/2600MHz. Like other 4G LTE Router such as Huawei B890, 4G-AC55U is also backward with UMTS and GSM/GPRS networks.     The Asus AC55U 4G Router provides a very fast Wi-Fi connection compared with other models. The device transmits simultaneously to 2.4 GHz and 5 GHz on demand, thus reaching speeds of 300 + 786 MBit/s. Thus data-intensive applications such as UHD streams, online gaming and a NAS usage should be no problem. Alternatively, you can also use a four RJ45 Gigabit Ethernet ports on the back of the router for connecting devices with the Asus 4G AC55U. The wireless connection can be switched on and off on request with a switch on the back.   For the connection of a USB storage media, an USB 2.0 slot is available. So you can for example integrate an external hard drive in the network and retrieve content such as movies and photos directly on the smartphone or tablet. A printer can be integrated via USB to the network.   The Asus 4G AC55U is currently available at www.4gltemall.com . If you like it, you could order it.

TP-Link TL-MR6400 4G LTE Router

Following the top vendors, TP-Link presented new 4G LTE Router. The TP-link TL-MR6400 LTE router is now available in many European countries, such as Germany, Austria and Switzerland. With a budget price, the TP-MR6400 is rather low in comparison, but the router offers a decent equipment such as a 150 MBit/s LTE modem and wireless with up to 300 MBit/s. In addition to three RJ45 LAN ports, there is a fourth combined WAN/LAN port, so you can operate the TL-MR6400 also using an external cable, DSL or fiber optic modem. External antennas and SIM Adapter The TP-Link TL-MR6400 looks unspectacular; there are two external antenna on the body connecting to the router with a cellular modem. According to TP-Link, the antennas can be easily unscrewed by the user, if you prefer to use an LTE external directional antenna. For the operation of the modem, the router requires a SIM card in the standard mini SIM form factor, the adapters for Micro-SIM and nano-SIM are included, so any existing SIM card is ready for use immediately in the TL-MR6400.     LTE Cat4 Modem The modem can be used at speeds up to 150 Mbit/s in the downlink and up to 50 Mbit/s in the uplink, this corresponds to LTE category 4 (Cat4). It supports the FDD-LTE frequency ranges 800, 900, 1800, 2100 and 2600 MHz in the TDD-LTE. Furthermore,  the TL-MR6400 supports dual band UMTS with up to 42.2 Mbit/s in the downlink and up to 5.76 Mbit/s in the uplink and quad-band GSM/EDGE.   Ethernet LAN and Wireless Internet connection is passed either wirelessly via WLAN or via one of the four RJ45 network connections on terminals. The TL-MR6400 also supports Wi-Fi 802.11b/g/n on 2.4 GHz with up to 300 MBit/s and has four 100 Mbit/s LAN ports. Here you can tell the competitive price, because Gigabit LAN would have been given the up to 150 MBit/s fast LTE modems, which is definitely required. With the 100 Mbit/s LAN ports, it is impossible to exploit the full LTE speed. The TP-Link TL-MR6400 is  one of the best LTE router on the market. A constantly updated overview of all LTE router can be found at this link. If you prefer other brands, such as Huawei, ZTE, we would like to recommend Huawei B890 4G LTE Gateway. Actually, here now, the LTE category 6 wireless router Huawei E5186 is already available for long time, if you prefer latest possible download speed, Huawei E5186 would be the best option, but you may have to bear higher price.

Huawei Mate 8 VS Huawei Mate S 4G Smartphones

Huawei has introduced very interesting smartphone: the Mate S and Mate 8 in recent months. The Chinese producer Huawei went up to the third-largest smartphone seller in the German market in 2015 and the Mate 8 and Mate S would like to improve on this position. While the Mate S was presented at IFA in Berlin and a short time later went on sale; the Mate 8 has been presented only to CES in early 2016. The two mobile phones are technically and optically very similar at first glance, but take a closer look at the technical and visual details, there are much difference.





The Huawei Mate S distinguishes very little visually from Huawei Mate 8: The front is dominated by a huge screen and each very narrow margins, hardware keys do not exist. The display of Mate S measures 5.5 inches, which is slightly smaller than that of Mate 8, which measures 6 inches. Even if the difference in the data sheet appears small: at the latest when you have the mate S and 8 in the hand and compares, you will notice the difference in size significantly. The Mate 8 is bulky, but one hand can hand it, so you should not be regarded it as negative point.





The processing of both the Mate 8 as well as the Mate S is almost perfectly. The Mate S here nonetheless wins the comparison, because the back has two thin antenna strip of metal, while in Mate 8 has only a piece of plastic cover for the antennas used. The Mate 8 falls on the circular fingerprint scanner and the circular camera mount, while the Mate S has both built in classic rectangular design. Both Huawei Mate S and the Huawei Mate 8 have two colors: gray and white.





Basically, both the Huawei Mate S and the Huawei Mate 8 are a very good technical equipment, which is classified in the upper class. Let's start with the display: the resolution of 1920 × 1080 pixels in common, but the display technology is different: the Mate S uses an AMOLED panel while the Mate 8 uses an IPS panel. Colors, brightness and sharpness are excellent for both devices. The internal memory is 32 gigabytes in size in each case and can be expanded via MicroSD memory card up to 128 GB. In addition, for Huawei Mate 8, there is still the possibility to take a second nano-SIM card instead of a mocro-SD card, so is it the ideal dual SIM smartphone. The simultaneous use of MicroSD card and dual SIM is not possible. Regarding the processor, the two devices differ only slightly, at least no difference in the speed. Nevertheless, the Huawei Mate 8 with the HiSilicon Kirin 950 is the significantly latest octa-core processor (Mate S: Kirin 935). Both devices come with 3 gigabytes of RAM and a very good fingerprint sensor.





  Other differences are there between the radio links, here the Huawei Mate is 8 is clearly more superior than the Huawei Mate S: the Mate 8 has not only the aforementioned dual-SIM function, but also the LTE modem is significantly faster (LTE Cat6 instead LTE Cat4, ie up to 300 MBit/s instead of just up to 150 Mbit/s downstream). In addition, the Mate 8 the near-field wireless NFC, the Mate S has not. Even when the wireless topic Mate 8 has one step ahead: it supports Dual Band WLAN 802.11a/b/g/n/ac on 2.4 GHz and 5 GHz, while the Mate S only WLAN 802.11b/g/n supports 2.4 GHz. The back camera of Mate S and Mate 8 has an optical image stabilizer (OIS) and a dual-LED flash. The Mate 8 can create photos with up to 16 megapixel resolution (4: 3 format) that Mate S can accommodate up to 13 megapixels. For videos, both devices are limited to Full HD.





The Huawei Mate 8 is already with the latest Android 6.0 operating system and making it more up to date than the Mate S, which currently runs on Android 5.1.1. Serious differences do not exist, both units are very fast and the functions differ only in details. Both devices have pre-installed the user interface EMUI that Mate 8 a slightly newer version. EMUI reminiscent of the appearance and operation of the forth something to Apple iOS and is very easy to use.









An important point must not be missed when comparing two smartphones: the battery. While the Huawei Mate S comes with a 2,700 mAh strong battery, only slightly thicker and heavier, Huawei Mate 8 has a 4,000 mAh strong battery on board. not be missed: The batteries are not changeable for the two devices, when Mate 8 has a fast-charging adapter included, which fully charges the device within approximately 2.5 hours. During daily use, the higher capacity of the battery makes the Huawei Mate 8 clearly noticeable: while the Mate S just allow one day at normal use, two days at normal use are possible on Mate 8 easily. The Huawei Mate 8 is, like its predecessor Huawei Mate 7, a real endurance runner and currently certainly one of the smartphone with the best battery performance.





We can see Huawei Mate 8 dominates in many aspects, however, it must be noted that the Mate 8 is just appeared, while the S Mate is on the market for several months. After all Huawei Mate 8 is the latest new flagship for Huawei. The Huawei Mate S is currently cheaper than Mate 8 without a contract.  If you need a budget good smartphone, Huawie Mate S may be a good option.

How to Setup Huawei E5186 4G router

1. Start by inserting your SIM card and connect the power adapter to the Huawei E5186 router. The SIM card must be inserted into the bottom of the router. The power adapter should connect to the back of the router.
2. You must connect the router to your computer via the wireless network (Wi-Fi). You will find the router's name and network code on the label which is printed at the back of the router.
3. Once connected, open your internet browser (eg Internet Explorer or Safari) and in the address bar, type the router's address http://192.168.8.1. Go to the address.
4. Select the tab "Settings" and log on. The username is admin and the password is admin. You can also find both the router's address, user name and password on the label in the router.
5. The router will ask you to change your password when you log in. Skip this since your router is already ensured with a unique network code that you entered earlier in order to connect to the router. Close  the message.
6. Select the tab to the left called Quick Setup. You will now be guided through the setup of your router.
7. Once you have completed the quick setup, the Huawei E5186 router will be connected with the internet for surfing on the web.

If you want to know more details about the Huawei E5186, welcome to check here: http://www.4gltemall.com/huawei-e5186-4g-cat6-802-11ac-lte-cpe.html



Huawei 4G WiFi Cube E5180 Review

The telecom company “3” has introduced the Huawei E5180 4G mobile broadband router into the company's product line, and now we have the new smart 4G router available.

The first thing you notice is the size. The entire dimensions of Huawei E5180 are 110 x 70 x 70 mm, not much bigger than a coffee mug, and on top, the router has a beautiful soft blue LED light that indicates that the router is turned on. If the blue light is annoying, the E5180 4G WiFi Cube can be disconnected from the options menu, or simply by pressing down on the top of the router. Possibility to switch off the light is a welcome feature, since the blue light can be irritating.

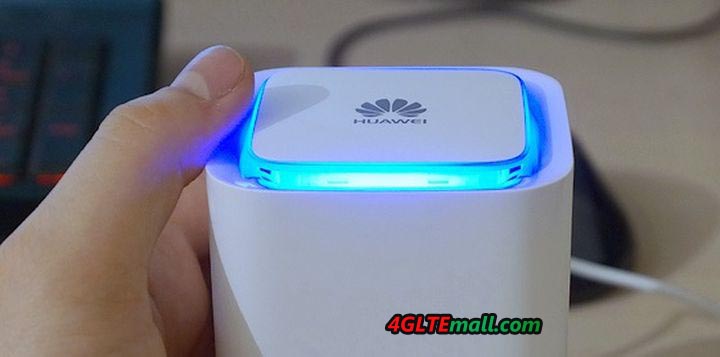

Compared to some larger mobile broadband routers, it seems Huawei E5180 is elegant. On the front, there are two small blue LED light that indicates when the router has the connection to the mobile network and when there is Wi-Fi connection. On the back of the Huawei E5180 Cube, there is an Ethernet port, a PSTN (phone) port and a plug for the power supply. The external power supply is white with white cord, and fits well with the small little beautiful router. You can install the SIM card at the bottom of the router. Also a flat Ethernet cable is included in the sales package, and this is also white.





Technically, there is a Category 4 LTE modem supporting speeds up to 150 Mbit/s in 4G LTE and DC-HSPA+ up to 42 Mbit/s over 3G. The Huawei WiFi 4G Cube router supports the 4G FD-LTE on 800, 1800, 2100 and 2600 MHz. During our test, the Cube E5180 router showed the fine reception on 3’s 4G network.   Wi-Fi connection is at 2.4 GHz, and the router supports 802.11 b/g/n standards. N standard runs with MIMO 2 × 2, and according to the sales package, the Huawei Cube E5180 could cover up to 250 meters - this part could not quite be confirmed, but the range of Wi-Fi signal was quite acceptable. The Huawei WiFi Cube E5180 supports up to 32 connected Wi-Fi devices simultaneously.



The router has only Wi-Fi 2.4 GHz, and it is not possible to choose whether the router must use Wi-Fi B, G or N standard. The router uses all three standards, and it can not change. However, it is possible that user can make four separate SSIDs (separate Wi-Fi network), but you can’t setup more advanced things such as bandwidth-limitation of the additional SSIDs. You can set up a SIP account if you wish to use the router PSTN jack to connect a landline phone on the router, and use it for Voice over IP telephone.





There is no possibility of connecting external antenna to this 4G WiFi Cube, so you must use the Huawei E5180 far from the nearest cell tower. The rate has been acceptable throughout the test.







Small, light and elegant

Two words can summarize Huawei E5180 could be "very good". The Huawei 4G WiFi Cube is not designed to be an all-round solution like many of the other mobile broadband routers on the market. The E5180 router is designed to be small and elegant, and so easy to install that you basically only need to insert a SIM card. The router is nice and easy to use in everyday life. Huawei E5180 is an exciting 4G LTE router that fits perfectly in the frame. Good performance, easy to get started and fine speed. Huawei E5180 does really well.





Sourcing from: http://www.4gltemall.com/blog/huawei-4g-wifi-cube-e5180-review/

Huawei E5186 4G LTE Router Test

Huawei E5186s is the name of the Chinese producer's latest mobile broadband router on the Danish market, and the telecommunications company “3” has introduced the E5186 router into their range as the router perfectly fits 3s network. The router can support Carrier Aggregation, which the phone company uses to achieve speeds of about 140 to 150 Mbit/s. The features on Huawei E5186 router:

• 3G/4G LTE router with carrier aggregation
• 4G LTE Category 6 router option to download up to 300 Mbit/s
• Wi-Fi b/g/n/ac both on the 2.4GHz and 5 GHz

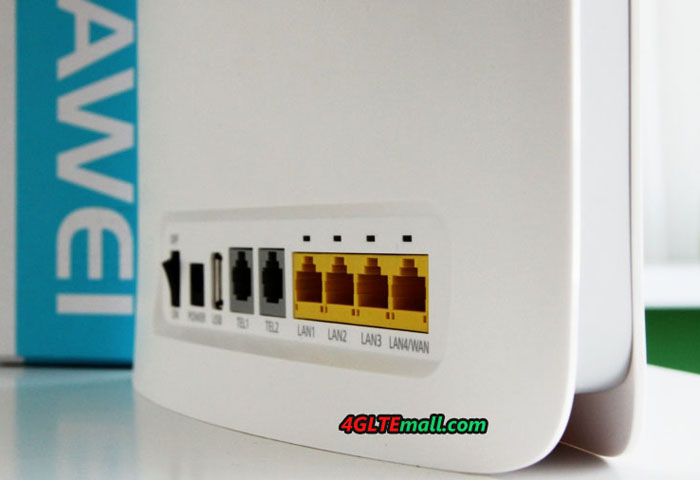

• 4 Ethernet ports
• USB port for sharing files

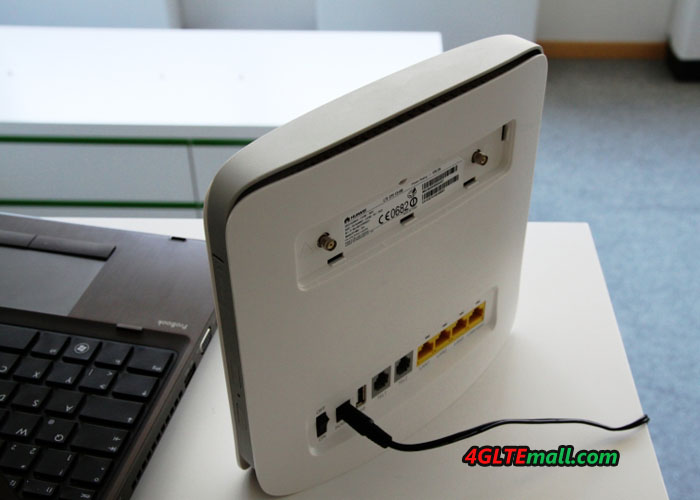

• Antenna connector for external antenna.

    Mobile broadband routers usually include not only the most basic set, and is by no means at the forefront compared to normal home routers, so this must be kept in mind to have a little quick look at the router's functions. The start-up of the Huawei E5186 router is very easy. You put the Sim card in, turn on the router and the name of the wireless network and the password are behind the router. So you can access the internet in two minutes. The router is kept in white color, fit perfectly into most homes. Somebody may not exactly love the router's blue twinkling lights. It should be mentioned that the included black power adapter is just as ugly as all other black power supplies that are currently provided in electronic products. How Huawei E5186 router works   The first thing you notice is that the E5186 router's configuration to be accessed via the address 192.168.8.1, which is slightly different than most other routers in the consumer market. Next, you will be presented with a login window where you see the router's current status without having to login to. On the statistics, you can see the statistics of one's consumption of data. The statistics are not just useful for much, but it gives an opportunity to follow one's consumption, although it is somewhat unclear how the statistics are generated. It is possible to update the router software on page “update”. The software update can be performed locally via USB or downloaded online.

Many advanced options

The real fun options are listed in the settings where all the huawei E5186 router important settings hiding. Here you can change the name of the Wi-Fi network individually on both the 2.4 and 5 GHz. Unfortunately no possibility to make a guest network.

On the other hand, there are plenty of other very advanced features such as to setup a SIP server, which you use to certain types of IP telephone. The router is equipped with two phone ports, so it is possible to use the Huawei E5186 router to the IP phone. But this part, we have not tested.

It is also possible to block access to certain websites directly in the router - eg. block access to Facebook or YouTube. You simply enter the address of the web sites you do not want users to be able to access via the browser, and so prevents the router access to the site, which is quite useful if teenage daughter spend too much time on Facebook.

Finally, it is also possible to share the contents of a hard drive or a printer respectively via DLNA and Samba over the LAN. DLNA function serving as expected, and it is possible to stream video, view photos or play music. The setup of samba function caused not so many problems.

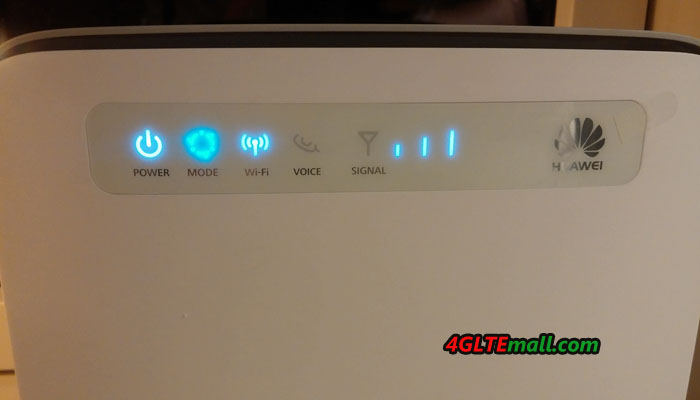

LED light shines like a beacon

The most important thing about the Huawei E5186 router is enough for daily use where you do not have to play with the functions in the menu, the router would be running rock-stable. Even with sometimes up to 14 Wi-Fi devices connected, Huawei E5186 LTE router drove stable, and there was absolutely no trouble keeping Wi-Fi connection itself far from the router. It is really convenient to be able to choose Wi-Fi at 5 GHz, when many residential areas have too many Wi-Fi network at 2.4 GHz, which creates noise and resulting low throughput of Wi-Fi.   Huawei E5186 4G router is also equipped with two connectors for external antennas. The router's antennas are quite sensitive, and during the test, no trouble keeping the connection to the 3's 4G LTE network. If you live far from the nearest cell tower or in an unfortunate area, so it is possible to connect an external antenna. You can use below the external antenna with two connectors to improve the signal strength. You may refer to below the link to buy the external antenna for Huawei E5186 Router: http://www.4gltemall.com/4g-antenna-two-ts-9-connector.html The only really big complaint about Huawei E5186 router is the exceptionally bright LED lights on the router's front - LED light shines just like a lighthouse. User should not put the router in the bedroom if you are planning to get some sleep during the night, and there should be a configuration option to turn down the strong light.   Overall, Huawei E5186s router is a quite fine and sensible 4G router. It was no connection problems under the little mini-test, and the router did its good job for 12 terminals. If you are planning to buy a future proof router with good stable performance, Huawei E5186 4G LTE wireless router is recommended.

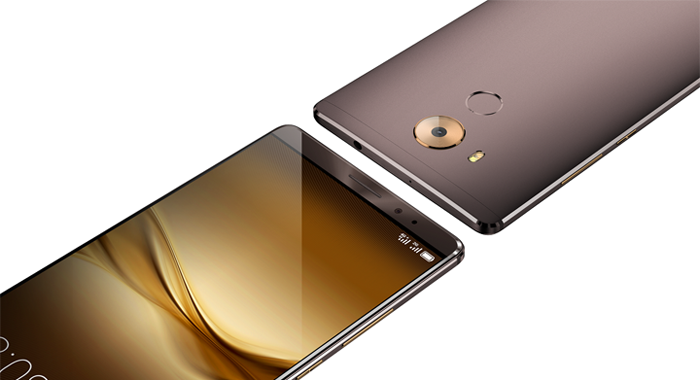

Huawei Mate 8 4G LTE Phablet Available

Huawei has launched Mate 8 smartphone at CES 2016 in Las Vegas to the international market. The Huawei Mate 8 is a phablet(Phone and Tablet) with 6 inch display and dual SIM function. Like its predecessor model Huawei Mate 7, Huawei has built a particularly strong battery, the capacity is 4,000 mAh, which should allow an operating time of two days under normal use. In late November 2015, Huawei Mate 8 has already been presented to the Chinese market, the device was available in Europe from the end of January 2016.   Huawei built Mate 8 a display with a diagonal of 6 inches and a resolution of 1920 x 1080 pixels (Full HD). As with the sister model huawei Mate S, the display is protected by a slightly rounded glass ("2.5D glass"). This causes the device itself should feel particularly well and in particular the gesture control is improved. Of course, the curved glass is also visually quite a looker. The internal memory is 32 gigabytes in size, and can be extended up to 128GB, the memory is 3 gigabytes via MicroSD memory card.   The processor comes with the Huawei Mate 8 is a HiSilicon Kirin 950. It is an octa-core processor with 2x 4 cores, which is manufactured in 16nm FinFET technology. Also the modem comes from the subsidiary HiSilicon, which works strangely only with up to 150 MBit/s in LTE network. The predecessor was still LTE Advanced Cat6 with up to 300 MBit/s. Wi-Fi is also supported, in addition to the 2.4 GHz band, whether Huawei also integrates the 5 GHz band is still unclear.   The Huawei Mate 8 will be available in Europe in late January 2016. The price is good without a contract, but the price will probably be a little cheaper at some online retail store such as www.4gltemall.com. The phablet will be in "Space Gray" color as well as in "Moonlight Silver". People also know the Huawei Mate 8 since last year and it’s said that the Mate 8 is as good as iPhone 6, even better. We had tested the Huawei Mate 8, you can check the test report for Huawei mate 8. But whether it’s better or not, user would have their own opinion. It’s no doubt that the Huawei Mate 8 becomes a shinning star in the 4G LTE Smartphones.

Netgear Presented AirCard AC810S with LTE Cat11

Netgear has announced the first mobile hotspot AirCard AC810S with LTE Advanced category 11 at CES in Las Vegas. With LTE Cat11, the router reaches speeds of up to 600 megabits per second in the downlink, so that the device is twice as fast as the fastest development stage (category 6). Operation is carried out in a large color touch screen on the front, like the predecessor model Netgear AC790s.   In Europe, LTE Advanced Cat11 is currently not offered by any network operator, but Vodafone is planning the launch of LTE Advanced with more than 500 Mbit/s around mid-2016 and other network operators are sure to upgrade their networks accordingly. After the MWC in Barcelona , we suppose more terminals with LTE Cat11 or LTE cat12 will be coming onto the market. Like older mobile LTE hotspots, Netgear sets the AC810S a comparatively very good quality. So the WLAN module supports dual-band operation on 2.4 GHz and 5 GHz and it also supports the fast WLAN 802.11ac. Up to 15 devices can be connected with Netgear AC810S simultaneously via WLAN for Internet connection. On request, you can set up multiple SSIDs (network names) for guests and visitors as well as for private use. If you are at location with weak signal, you can connect an external antenna to the Aircard 810s to improve. The antenna connectors in the Netgear AC810S are two TS-9 ports. If you want to buy an external antenna for Netgear Aircard 810s, you can check below the antenna: http://www.4gltemall.com/4g-antenna-two-ts-9-connector.html     According to Netgear official site, the Netgear AC810S has a replaceable battery with capacity of 2930 mAh and the operating times of about 11 hours are possible for continued use. It comes with a so-called Jump Boost cable, which allows you to use the Netgear AirCard 810 hotspot to charge other devices such as smartphones and tablets. LTE Cat11 with up to 600 MBit/s The Netgear AC810S may take up to three 20 MHz wide frequency ranges bundle (Triple Carrier Aggregation). Depending on the configuration and frequency from the network operator, the Aircard 810s therefore could possibly reach up to 600 MBit/s in the downlink. In Germany, Austria and Switzerland, the network providers would take the carrier aggregation at the frequency ranges of 800, 1800 and 2600 MHz and both the German Telekom and the provider Swisscom have already announced wanting to put Carrier Aggregation the future. Netgear has not yet announced whether the AirCard AC810S router will come onto the market. Even for the price, there are so far no details. Probably the AC810S LTE router will be more expensive than its predecessor, the Netgear AC790S with LTE Advanced Cat6 (300 MBit/s) without a contract. For more details and a detailed data sheet can be found on the website www.4gltemall.com .

How to Update Honor Honor 7 to Improve Audio for Telephone

The Huawei Honor 7 has an update available for a short time, which fixes several minor problems. According to the feedback from users about Honor 7, one of the biggest problems of the device is the audio quality, which need to be improved with telephone calls. There has been often misfires with telephone calls in GSM and UMTS network, and the communication quality is  bad despite good reception that you barely understood and had to cancel the call. Personally, I have these problems especially in the dual SIM operation in 2G network while other devices did not have the audio problems at the same location. With the new update with version number PLK L01C432B170, the problem was fortunately resolved.





OTA update The update for the Honor 7 can be easily accessed on the smartphone via the Settings menu. The upgrade program allows downloading the firmware via both Wi-Fi as well as via the cellular connection, the actual installation takes about 10 minutes.



The small firmware update for the Honor 7 brings only security patches and enhancements of existing functionalities. Next to the audio problem, some translations of minority languages was rectified. Even the mistakes that often two notification symbols are displayed at only one new message in Messenger applications like WhatsApp and Telegram, has been finally resolved with the update. The Android version number remains in the 111 megabyte update at 5.0.2 (Lollipop ), you have to wait at the big update to Android 6.0 Marshmallow. there is already a beta version for this update, interested users can sign up for the beta test and install Android 6.0.

If you are interested in Honor 7, welcome to check more details about this smartphone here: http://www.4gltemall.com/huawei-honor-7-4g-lte-smartphone.html

Netgear AirCard 810S(AC810S-300) LTE Cat.11 Mobile Hotspot for Sprint

Netgear had presented a new LTE terminal "AC810S-300" to market recently. The Aircard AC810S hotspot has passed through the FCC at December 7, 2015. FCC ID is PY3AC810S.





The Netgear AC810S LTE Mobile hotspot could support multiple networks, such as FDD-LTE/TD-LTE/W-CDMA/CDMA2000. The Mobile networks include FDD-LTE 1900 (B2 / B25) / 1700 (B4) / 850 (B5) / 800 (B26) / 700 (B12) MHz, TD-LTE 2500 (B41) MHz, W-CDMA 1900 (II) / 850 (V) MHz, CDMA2000 1900 (BC1) / 800 and is certified by the (BC0 / BC10) MHz.   The Aircard 810s has been passed in the frequency of wireless LAN, standard corresponding to the IEEE 802.11 a/b/g/n/ac. Wireless LAN communication 5.xGHz band in addition to the 2.4GHz band are also made possible.





Netgear has many branch models, which has not be published, and the AC810S-300 is also the model number of unpublished terminal. It can be seen that it corresponds to previously announced AC810S series.



NETGEAR AirCard 810S is a mobile wireless LAN router that supports carrier aggregation and it is a LTE UE Category 11 and the key technologies of LTE-Advanced. Carrier aggregation corresponds to the 3 component carrier aggregation (3CC CA), the communication speed could reach the maximum downlink 600Mbps.



We had seen the sample with the US mobile operator Sprint logo on the device. It is believed that NETGEAR AirCard 810S will be introduced for the Sprint.

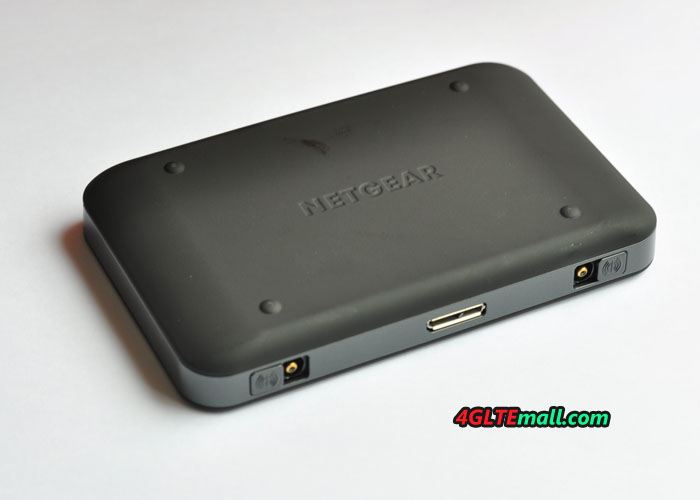

Netgear AirCard AC790 LTE Cat6 Hotspot

The Netgear AirCard AC790 Hotspot with LTE Advanced Cat6 was presented last year to the MWC, now the LTE mobile Hotspot is available in many countries. The Aircard 790S has a large touch screen on the front and the operating time is up to 11 hours, which means a very good quality for competition.





What’s more, up to 15 devices can be supported simultaneously by Dual Band WLAN 802.11ac with an Internet connection. Unfortunately, the large range of functions is also reflected in the price. Here now you can get the unlocked Netgear AC790 LTE Advanced Cat6 mobile hotspot from www.4gltemall.com .





  Netgear AirCard 790s LTE Hotspot has equipped with a cellular modem from Qualcomm, which can operate equivalent LTE category 6 ("LTE Advanced ") at speeds of up to 300 Mbit/s in the downlink and up to 50 Mbit/s in the uplink. So far, only a few other mobile routers offer this speed, such as Huawei E5786 and Alcatel Y900.







The AC790s supports the following LTE frequency bands: B1, B3, B7, B8, B20, B38, B40 (2100, 1800, 2600, 900, 800, 2600 and 2300 megahertz). Carrier aggregation, which is necessary for LTE Advanced bundling of frequency ranges, is supported for a total of seven combinations, both intra-band and inter-band, for example, 1800+ 2600 or 2600 + 2600 megahertz.



In addition, the Netgear AirCard 790s LTE router supports UMTS including data accelerator DC-HSPA+ for speeds of up to 42.2 Mbit/s in the downlink in 3G network. Also GSM with EDGE is supported. To connect to the computer, WLAN is available on both 2.4 GHz and 5 GHz, and up to 15 devices can be simultaneously connected to the Aircard AC790s.

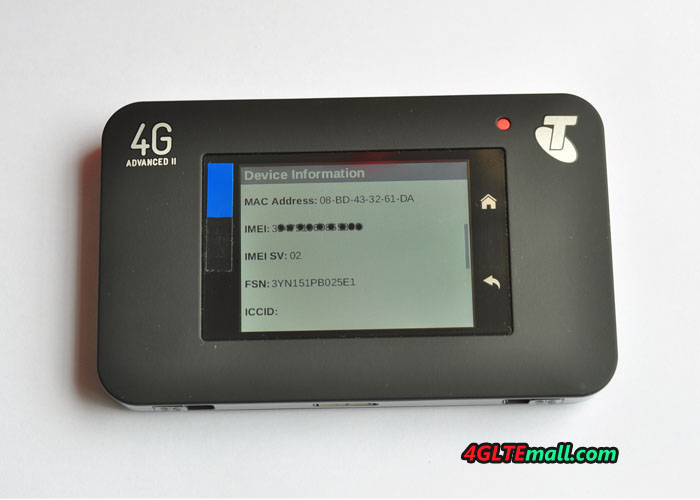

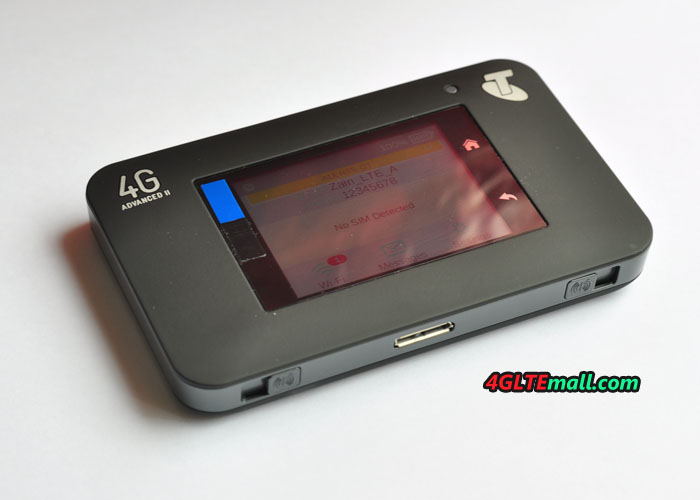

  The biggest feature of the Netgear AC790 is undoubtedly the 2.4-inch touchscreen with color display on the front. Thus, the router is the first LTE Cat6 mobile hotspot, which can be configured and operated completely without web interface. Although there were already many mobile router with the display feature, but the display acted far more likely to display important information such as battery status and network availability.

  With dimensions of 110 x 68 x 15.44 mm and weighing around 136 grams with battery, Netgear AC790 is not particularly compact and light, yet the device should fit easily into your pocket or in a small backpack pocket. The 3,000 mAh strong battery not only allows an operating time of up to 11 hours, but also has a power bank function, ie you can recharge other devices such as smartphones as needed. The right charging cable is included. The Netgear Aircard 790s has two connectors for external antenna, the connector type is TS-9, you can use below the antenna to improve the signal strength if necessary:

You can buy the external antenna for netgear aircard 790s here:

 http://www.4gltemall.com/4g-antenna-two-ts-9-connector.html



The Netgear AirCard AC790s Hotspot is available now at online store www.4gltemall.com . The Aircard 790s is SIM card unlocked, which means you can use it the device worldwide without any limit. The user must get a valid sim card from local network provider to connect.



Huawei E5186 - First LTE Cat6 Router for A1

The first LTE Cat6 router Huawei E5186 arrived available for A1. Thanks to the introduction of LTE Carrier Aggregation  at the end of June 2015, so that bandwidth of up to 300 Mbit/s can be achieved. Thus, the Huawei E5186 router with appropriate tariff is ideal for work/surfing/games at home. The model number is huawei E5186s-22a, as we know, there is brother model Huawei E5186s-61a, which is for Australian market. If you are interested in the performance of this router, it’s necessary to see this test below.       In an unspectacular packaging, we find the E5186 router, a power cable, a LAN cable and a Quick Start Guide. In the brief instructions, we will discuss on the importance of the lamp, the connections and the installation of the SIM card. The Huawei E5186 router size is not smalle, dimensions are 194 x 177 x 64mm and lack of battery for stationary use. On the front, we find LEDs that indicate the current operating status. The air vents are designed on the top and bottom. When working, the router is not hot, thanks to passive cooling, there is also no noise.   On the back we find a whole range of connections. In addition to the power connector, there is a USB port (for a network printer and USB Storage), 2 telephone lines and 4x Gigabit LAN ports. Behind the white panel, there is also the possibility to connect an antenna for better reception. If you want external antenna for Huawei E5186, we will recommend two antennas for your consideration. The micro-SIM card is inserted on the right side of body.     It’s simple to operate the E5186 LTE CPE: After insertion of SIM card and activation of the Power switch in the router, it would be connected with the mobile network after about 30 seconds. The Huawei E5186 router itself, brings the configuration of the connection automatically, manual input is unnecessary. And then other terminals can connect the WiFi and surf after the router connected with network. Those who then want to change the wireless network password or other settings, can do that on the router interface. The makes a very neat impression and you find yourself good at it rightly.     Huawei E5186 router offers the classic configuration via browser while there is another way to do the settings: The Huawei Mobile WiFi app. The app can be installed to the mobile phones or tablets by means of a clear user interface and wireless network settings.     Here, you can see the Huawei E5186 router technical features: It offers all common standards with WiFi 802.11b/g/n/ac at 2.4GHz / 5GHz Dual Band and supports up to 64 devices. The range of the wireless network is about 250 meters (without obstacles), the possible bandwidth is up to 1.1 Gbit/s. This is the WiFi standard 802.11ac including simultaneous use of 5 and 2.4 GHz bands. In order to exploit the full speed, you need a corresponding network environment.   The Huawei E5186 4G/LTE router supports mentioned LTE Cat6, and thus enabling download speed of up to 300Mbit/s. Of course, it also supports all other standards, so LTE Cat4, HSDPA (Dual Cell) and EDGE or GRPS. The range was great in the practical test: I have measured 80 Mbit/s with LTE Carrier Aggregation without that latency. Surfing speed was particularly impressive. Since LTE provides really good value!   The reception of Huawei E5186 can also be improved with an external antenna if necessary. The antenna connector is SMA socket, here we have two external antenna for Huawei E5816. They both work well in real test:   Antenna one for Huawei E5186: You can buy the antenna from here: http://www.4gltemall.com/huawei-b593-4g-antenna.html   Antenna two for Huawei E5186:     You can buy this antenna from here: http://www.4gltemall.com/4g-antenna-two-sma-connector.html     Conclusion For those who need fast Internet at home or a more remote region, we can recommend the Huawei E5186 router: it is ready to go, offers a number of setting options and a very stable and fast wireless internet. As a result, the E5186 LTE router is not only suitable for working or surfing, but also to play. But this also depends on the network coverage. The LTE Cat6 are already covered in more and more cities over the world and LTE latencies are generally low. We suppose the Huawei E5186 is a future proof LTE Wireless router, it’s worthy to buy!   If you ask whether there is similar LTE Cat6 router, there is still Huawei router to recommend. The model number is Huawei E5175. It's a brother model like E5786, but not well-known.
