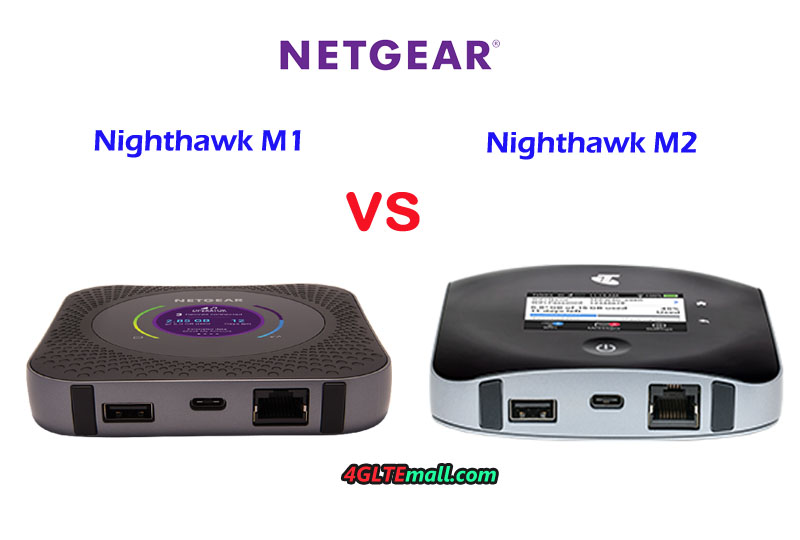

Netgear Nighthawk M2 VS M1

To meet the requirements from 5G network, Netgear presented a new mobile WiFi hotspot Nighthawk M2 for the Australian network provider Telstra and carriers in Europe. Netgear Nighthawk M2 is an ultra-fast portable WiFi router with next-generation Gigabit 4G LTE connectivity with a download speed of up to 2 Gbps. The Netgear Nighthawk M2 5G router is upgraded from the predecessor Nighthawk M1, so you may ask what’s the difference between Netgear Nighthawk M2 and M1?





In the table below, you will see the details specs of Netgear Nighthawk M2 unlocked and Nighthawk M1 unlocked for your reference:



Model Netgear Nighthawk M2 Netgear Nighthawk M1
Product type 5G Mobile Hotspot 4G LTE Mobile Hotspot
Category LTE Cat.20 LTE Cat.16
Chipset Qualcomm Snapdragon X24 Qualcomm MDM9x50
Data rates DL 2Gbps/UL 150Mbps DL 1Gbps/UL 100Mbps
Supported 4G LTE frequency bands -- Telstra Nighthawk M2 MR2100-1TLAUS: Band 1/3/7/8/28 -- Nighthawk M2 MR2100-100EUS: Band 1/3/7/8/20/28/38/40/41 -- Hong Kong Nighthawk M2: LTE Band 1/3/8/20/29/30/38/40/41 -- Telstra Nighthawk M1: Band 1/3/7/8/28 -- AT&T Nighthawk M1:  Band 1/2/3/4/5/7/12/29/30/66 -- Hong Kong Nighthawk M1: LTE Band 1/3/8/20/29/30/38/40/41
WLAN 802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz 802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz
Max support users 20 users 20 users
MIMO 4 X 4 MIMO 4 X 4 MIMO
Connector for external antenna Two, TS-9 jacks Two, TS-9 jacks
Buy Antenna Netgear Nighthawk M2 Antenna Netgear Nighthawk M1 Antenna
App management Netgear Aircard APP Netgear Aircard APP
SIM type Micro SIM Micro SIM
Battery Removable, 5040 mAh Removable, 5040 mAh
Dimensions 105.5 x 105.5 x 20.35 mm 105.5 x 105.5 x 20.35 mm
Ethernet Port * One port for LAN port(RJ-45) * One port of USB-A * One port of USB-C * One port for LAN port(RJ-45) * One port for USB 2.0
Datasheet download Netgear Nighthawk M2 Datasheet Netgear Nighthawk M1 Datasheet
User Manual Netgear Nighthawk M2 Manual Netgear Nighthawk M1 Manual
Other features 3GPP, Rel. 14, 5 band CA, 256QAM DL / 64QAM UL, JumpBoost 3GPP, Rel. 12, 4 band CA, 256QAM DL / 64QAM UL,  JumpBoost
Firmware download Nighthawk M2 Firmware Nighthawk M1 Firmware
Drivers Nighthawk M2 Driver Nighthawk M1 Driver
Reviews Netgear Nighthawk M2 Review Netgear Nighthawk M1 Review
Price 999.00USD 459.00USD



Here you can check the general comparison of Nighthawk M2 and M1:

Nighthawk M2 Mobile Router (MR2100):

- LTE CAT 20, DL support up to 2Gbps speeds - 3GPP, Rel. 14

- 5CA with 20 simultaneous Downlink layers

- 4x4 MIMO

- 256QAM DL / 64QAM UL CA 3C, 7C

- 11ac Dual band dual concurrent



Nighthawk M1 Mobile Router (MR1100):

- LTE CAT 16, DL support up to 1Gbps speeds - 3GPP, Rel. 12

- 4CA with 10 simultaneous Downlink layers

- 4x4 MIMO

- 256QAM DL / 64QAM UL CA 3C, 7C

- 11ac Dual band dual concurrent



We can see that, based on the technology improvement, Netgear Nighthawk M2 is more advanced than M1, M2 can achieve download speed up to 2Gbps while M1 only half of it. And the Nighthawk M2 has larger touch screen to 2.4 inches. Other features are very similar.
